两条以不同速度旋转的线相交所描绘的曲线

hbghlyj

Twitter The curves traced out by the intersection of two lines rotating at different speeds

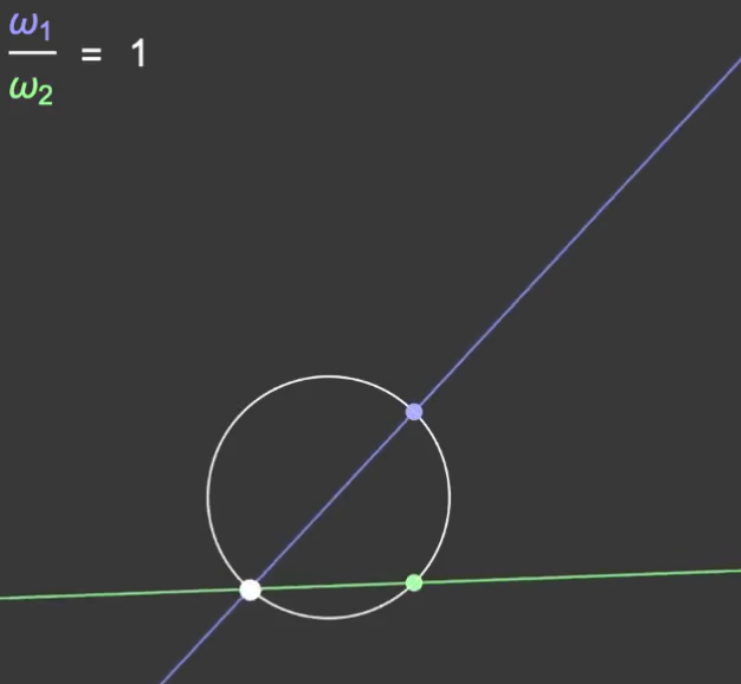

ratio = 1, circle

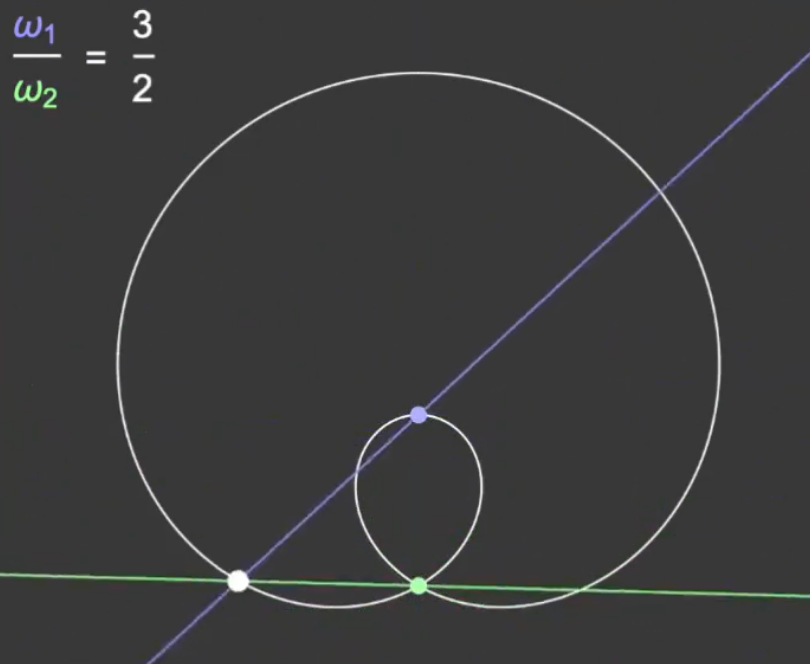

ratio = 3/2, limacon

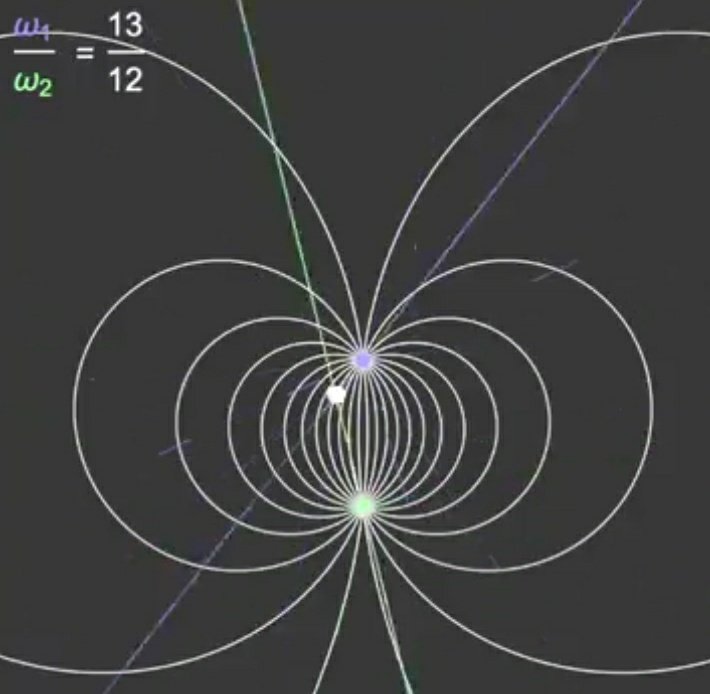

ratio =13/12 bipolar cylindrical coord. curves

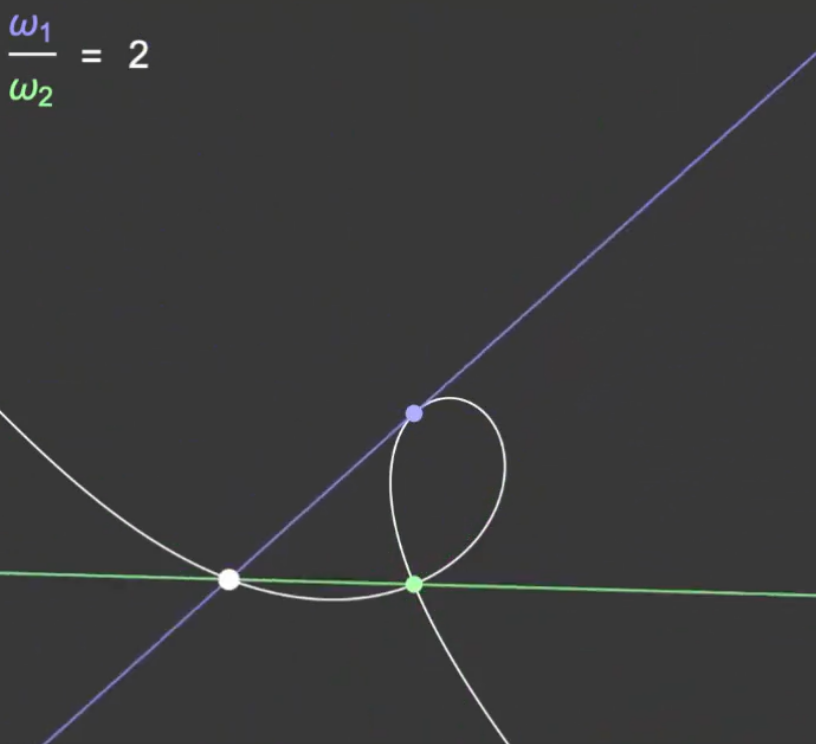

ratio = 2 Folium of Descartes

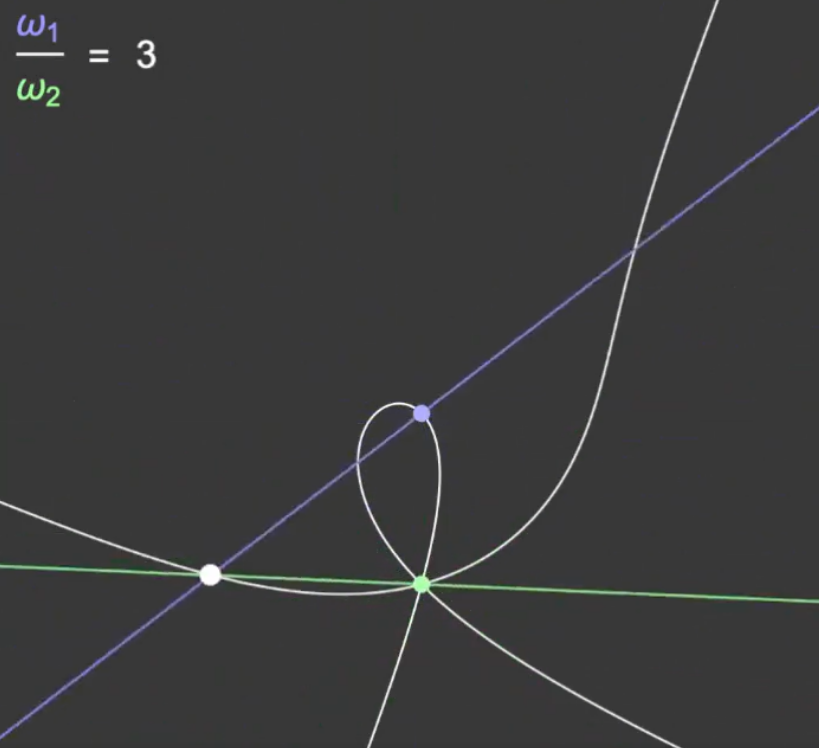

ratio = 3 branch of a conchoid, maybe

这个曲线族的参数化是

1. {2/(Tan[a*t] - Tan[b*(-c + t)]), Sin[a*t + b*(t-c)]/Sin[a*t +b*(c - t)]}

Copy the Code

$a,b$ 是速度，$c$ 是角度偏移。$t\in[-\pi,\pi]$.

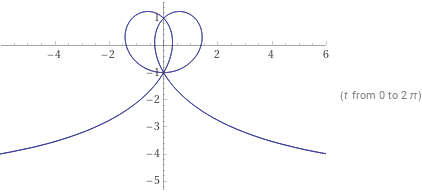

WolframAlpha(a,b,c=2,3,0)
